High performance digital Mini servo
High-precision steel gear
High quality brushless motor
Full CNC aluminium hulls and structure
Dual ball bearings
Super long life
25T (Futaba Type) Spline
JR style plug

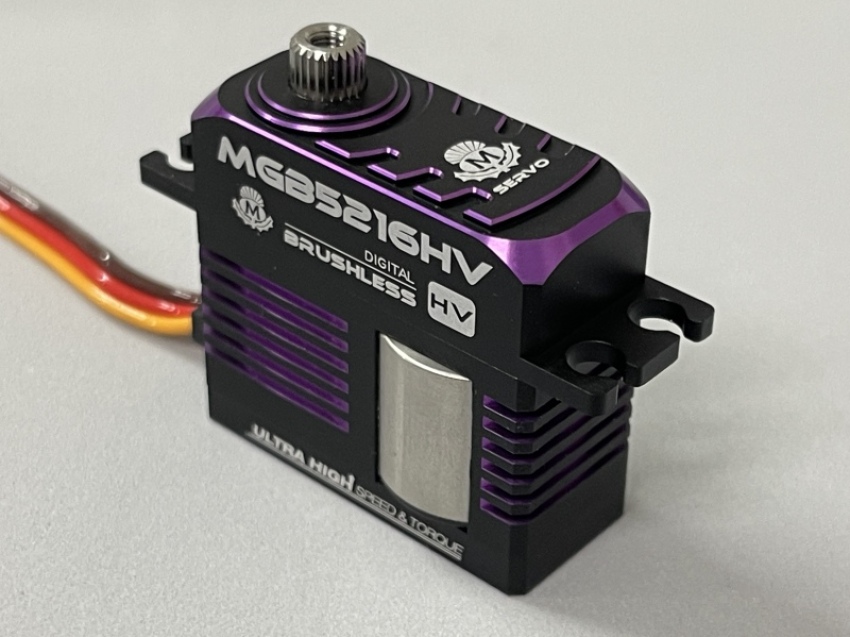

The MGB5216HV is a ultra high speed and torque brushless midi digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Jets, Aeroplanes, Cars & Helicopters. 16 kg torque at 0.08 sec/60deg is for a 15mm servo barely to believe. Some say it's a little CHEATER... with the motor lurking out of the sides that tiny bit (0.7mm). But it will still fit in most 15mm applications just fine. And the massive performance proves the developers right. GREAT JOB!
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
| Dead band: | 2µs default |
|---|---|
| Working frequency: | 1520µs / 330hz |
| Motor: | Brushless Motor |
| Gearset: | Steel |
| Spline: | 25T |
| Operating Voltage: | 5.0 ~ 8.4V |
| Operating Speed (5.0V): | 0.14sec/60° |
| Operating Speed (6.0V): | 0.11sec/60° |
| Operating Speed (7.4V): | 0.09sec/60° |
| Operating Speed (8.4V): | 0.08sec/60° |
| Torque (5.0V): | 10.5kg.cm |
| Torque (6.0V): | 11.5kg.cm |
| Torque (7.4V): | 15.0kg.cm |
| Torque (8.4V): | 16.0kg.cm |
| Dimensions: | 36 x 15 x 33mm |
| Weight: | 52g |
| Connector Wire Length: | 220mm |
| Bearing: | 2BB |
Item Number: 930165
Price: 99.00 USD
